Product Name: Vision Test Table

Vision Test System With Function Of Height Test

Vision test system includes vision software and integrated module

??1.Working Principle：??

Detect color and character by OCR teconology, make sure that fuses and relays are fixed correctly.

Detect components of box , and make sure components are fixed completely by height test.

2.Capablilties Of Vision Software：

1.Be able to detect height

2.Be able to detect the character

3.Be able to detect color differences

4.Be able to detect the parts’ shapes and locations,

5.Use database to save data, be able to query and

   output the test result

6.Friendly user interface, simple system set up

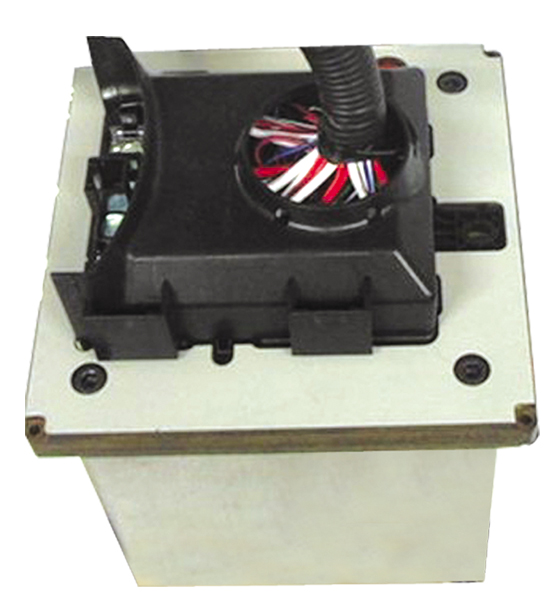

3.Integrated Module：

1.Fixture module

2.Camera with usb

?3.Led lighting system integrated，allow to be used

   in environments with variable lighting conditions

4.Pneumaticallocking

5.Releases the module automatically

   while the system shows ok.

 6.Module size:30*30*50CM

4.Test Samples：

1.All types of fuses and relays

2.Metal

3.Screw and screw nut

4.Letters of  label

5. Ribbon cable with colour

6.More functions on request

5.Height Test:

Detection of height deviation to prevent fuses are notfixed completely.

6.Very little color and character variation:
