Product Name:Flat Type Test Table

Flat Type: mainly usedfor unsegmental automotive harness system. The whole automotive system is heavy but

                  convenient to operate when tiled, although it needs several operators towork on it.

Size：1.2*3.6m，1.2*4.8m，or longer if needs.

Material:sheet withpaints. Its color could be gray、blue and black.

?Aluminum Beam:use new-type aluminum beam with full thread, which is easy to install and change.?

Power:220v、50HZ、8A

Pressure-regulatingvalve: pressure 4~6 bar.

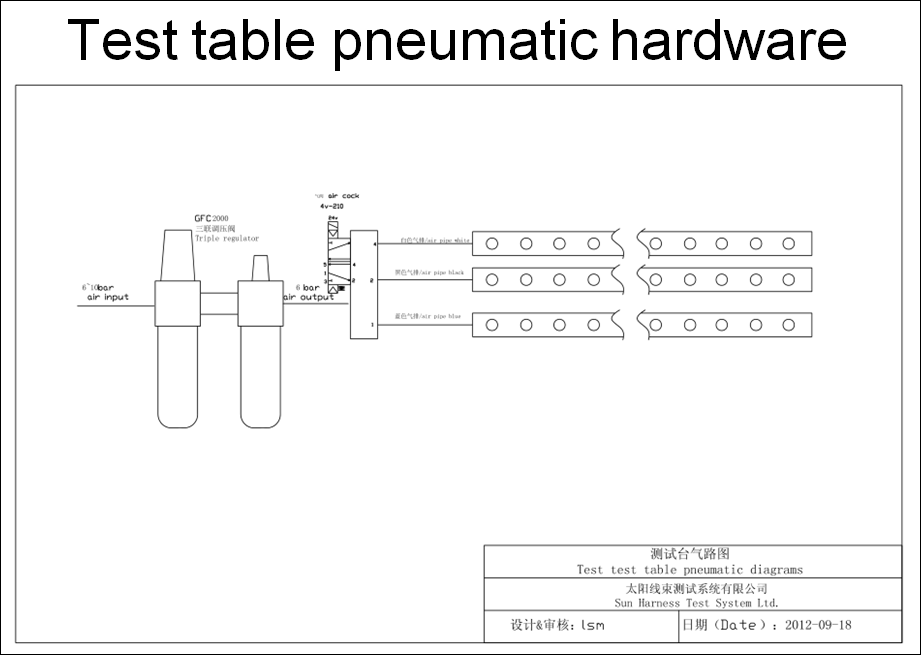

Test table pneumatic hardware：

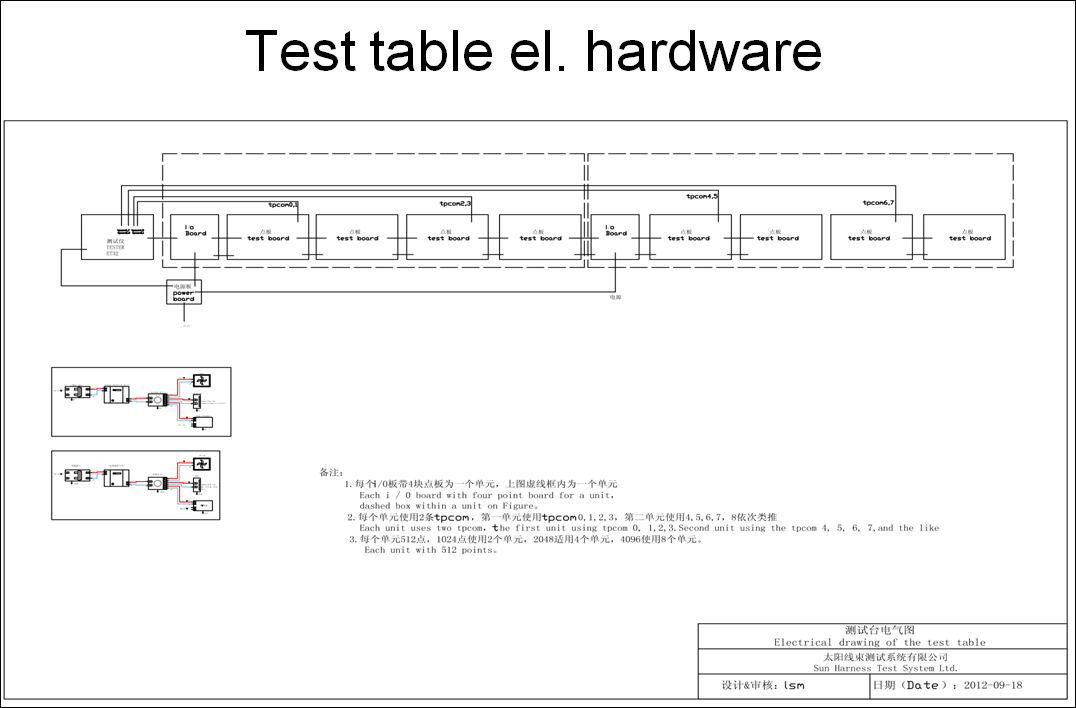

Test table el. hardware：

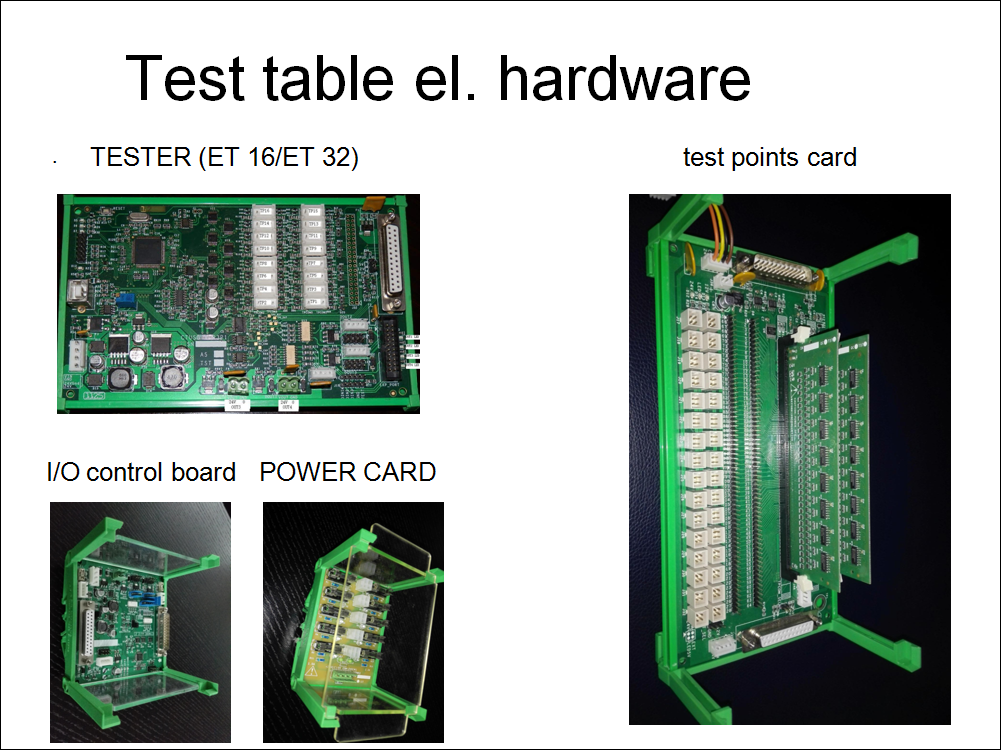

Test table el. hardware：

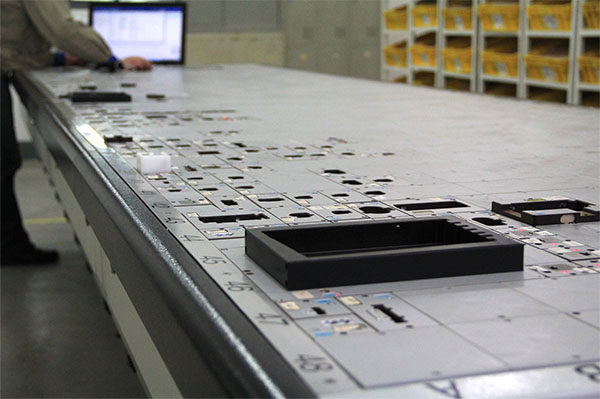

Flat Type Test Table 1：

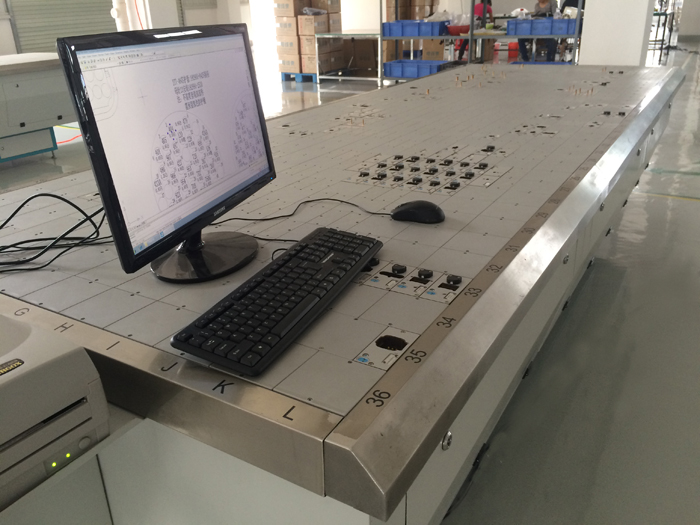

 ?Flat Type Test Table 2：?

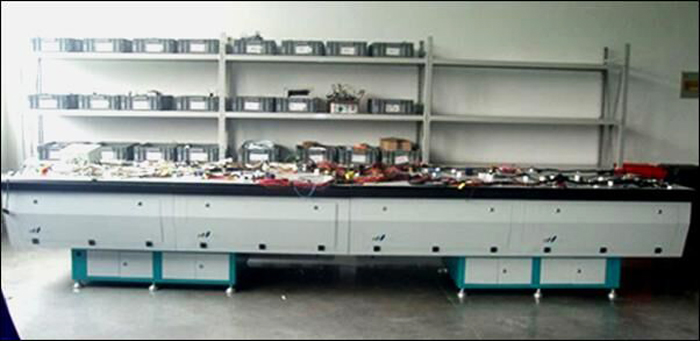

 ?Flat Type Test Table 3：?
